E Ink 2.9˝ EL029TR1电子墨水屏开发板Mbed shield board (EVK1.1-017415)

The E Ink Mbed shield board is the adapter board for Mbed, it is can connection with FRDM-K22F or other Mbed board. We will provide the sample code to you

● No ePaper display panels included in the package. Please make sure you are in possession of one or more Mbed shield board compatible ePaper display panels. Go to compatible display panels.(EL029TR1 2.9”)
● Mbed shield board needed work with FRDM-K22F, please reference Mbed website https://developer.mbed.org/platforms/FRDM-K22F/

Product Description

Raspberry Pi driving board function

Package content

This demo kit contains the following:

  • ● Mbed shield board


SPECIFICATION

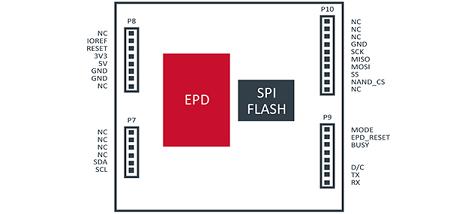

Block diagram
Item Specification
Outline Dimension 7.82cm × 5.334cm × 1.6cm


USER MANUAL

Mbed shield board View online
