VB3300-NCB/ED133UT2-13.3寸-1600 x 1200-16灰阶-并口-玻璃-电子墨水屏规格
VB3300-NCB/ED133UT2
‧13.3寸电子墨水屏：适用于大尺寸电子书阅读器、手写电子纸笔记本等应用
‧极佳可读性
‧极佳可读性

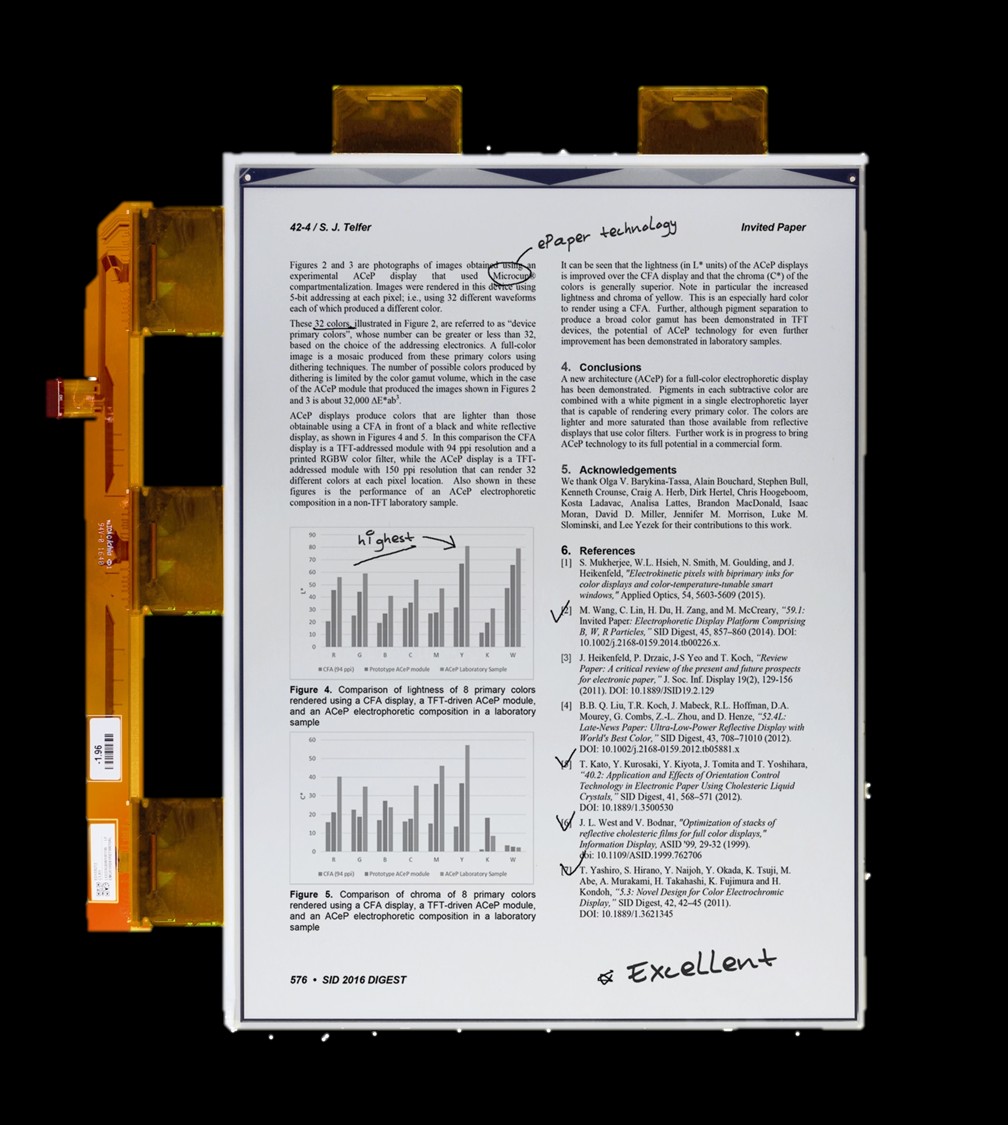

13.3寸主动矩阵电子纸显示器模組，1600x1200分辨率，支持黑白及16灰度，使用了E Ink Carta电子墨水薄膜，对比更分明。玻璃基板。
| 尺寸(inch) | 13.3 |
|---|---|
| 分辨率(HxV) | 1600 x 1200 |
| 有效显示区域(mm) | 270.40 x 202.80 |
| 外观尺寸(mm) | 285.80 x 213.65 |
| Dpi | 150 |
| 电子墨水薄膜 | Carta 1.2 |
| 刷新时间 | 450 ms |
| 背板 | Glass |
| 总厚度 | 0.78mm |
| 总重量 | 96g |
| 灰度 | 16 |
| 前光 | N |
| 表面处理 | Hard Coat |
VB3300-NCB is a reflective electrophoretic E Ink® technology display module based on active matrix TFT substrate. It has 13.3” active area with 1600 x 1200 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file.
The display module doesn’t contain a touch panel.
Product Description
Features
- ● High contrast reflective / electrophoretic technology
- ● 1600×1200 display
- ● High reflectance
- ● Ultra wide viewing angle
- ● Ultra low power consumption
- ● Pure reflective mode
- ● Bi-stable
- ● Commercial temperature range
Package content
- ● 13.3˝ ePaper Display (VB3300-NCB)
- ● FPC Adapter
SPECIFICATION
| Parameter | Specifications | Unit |
| Screen Size | 13.3 | Inch |
| Display Resolution | 1600 (H) × 1200(V) | Pixel |
| Active Area | 270.4 (H) × 202.8 (V) | mm |
| Pixel Pitch | 0.169 (H) × 0.169 (V) | mm |
| Pixel Configuration | Rectangle | |

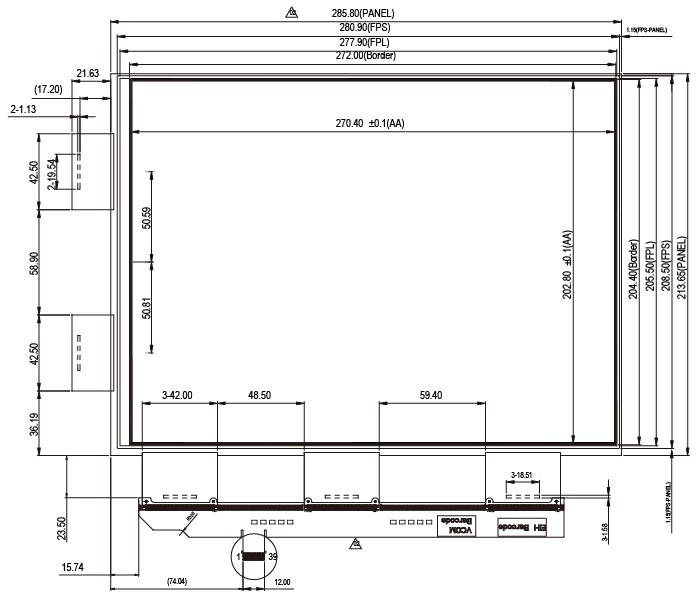

| Outline Dimension | 285.8 (W) × 213.65 (H) × 0.78 (D) | mm |
| Module Weight | 96 | g |
| Number of Gray | 16 Gray Level (monochrome) | |
| Display Operating Mode | Reflective mode | |
| Surface treatment | Hard Coating |

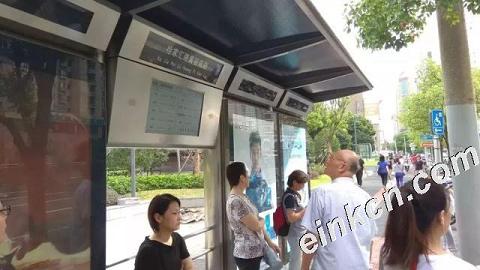

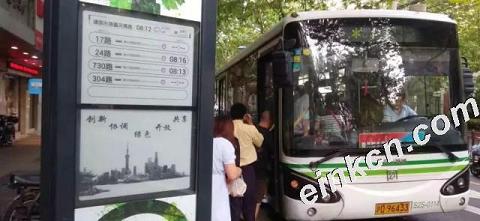

13.3寸电子墨水屏应用（点击下图，了解该产品详情）
